Visualize

Fish Market

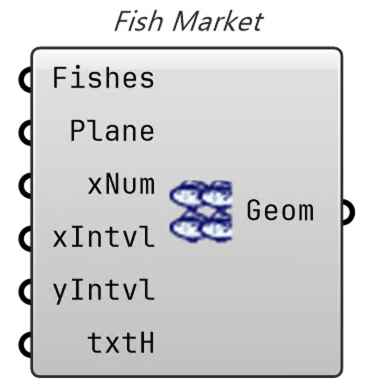

Fish Market component arranges the optimization results on the Rhino viewport.

Fishes is the input of the optimization results, Plane is the plane in which you want to align the results, xNum is the number of results to be aligned along the x-axis, Intvl is the spacing between results in each direction, txtH is the text height of the text to display the results.

If the model mesh was included in the Artfs input during optimization, the geometry will be displayed in the viewport along with the results.
